Sandwich
Panel Machine |
| |
| |
Parameter:
No. |
Model
|
Width
(mm) |
Thickness
|
Cover
width (mm) |
Size[L*W*H]
|
Power[kw]
|
1
|
TFVIC
|
1000/1200
|
0.4-0.6 |
950-1150
|
19754*1600*2700
|
22
|
2
|
TFVI
|
1000/1200
|
0.4-0.6
|
950-1150
|
20745*1600*2700
|
25
|
3
|
TFVII
|
1000/1200
|
0.4-0.6
|
950-1150
|
20754*1600*2700
|
28
|
4
|
TFVIII
|
1000/1200
|
0.4-0.6
|
950/1150
|
20745*1600*2700
|
28
|
5
|
TF-PU
|
1000/1200 |
0.4-0.6
|
950/1100 |
|
|
|

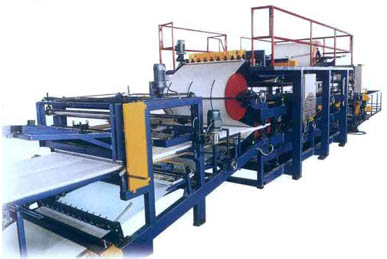

Sandwich Panel Machine
TF VII Sandwich Panel line can produce five types of
sandwich panels totally. And three for wall panel, two
for roof panel.
Polystyrene Sandwich Panel also called EPS Sandwich
Panel,the up & down surface of this panel is Galvanized
& pre-painted steel sheets, core material is Polystyrene,
it is formed by laminating and pressing with 2 components
PU glue. The sandwich panel is featured with temperature
keeping, hot & sound insulation, anti water and
fire resistant. It is widely used as the wall or roof
for cold storage, industrial workshop, public building
etc.
|
|
|
|
